Restoring Surface Flatness On-Site: A Portable Gantry Milling Case Example

A degraded surface on a press at a heavy industrial facility was producing readings outside acceptable limits and resisting every alignment correction the maintenance team applied. Shop machining wasn't feasible, equipment removal would have required a multi-week shutdown.

SPR's portable gantry milling machine was mobilized to site, set up directly on the base, and restored flatness to tolerance without removing the turbine. The unit returned to service within the shutdown window.

The Problem: What Was Wrong and Why It Mattered

The top bed of a 1,500-ton stamping press had bent in service. In precision tool and die work, bent is worse than warped.

Warped surfaces deviate gradually. A bent surface has a defined deformation, and a stamping press operating with a bent bed transfers that deformation directly into every part it produces. The bed had to be machined flat before the press could return to service.

The surface couldn't be ground or shimmed back to spec. The geometry required material removal across the full bed area to restore a true flat plane.

The Constraints: What Made This Job Challenging

Bringing in a shop machine wasn't possible. The constraints:

•
  Equipment size: the turbine and its associated piping made removal a major project scope in itself
• Shutdown window: a fixed turnaround schedule with no flexibility for extended downtime
• Classified area: an electrically classified zone limiting the power supply options for machining equipment
• Access: adjacent equipment on three sides, with limited overhead clearance

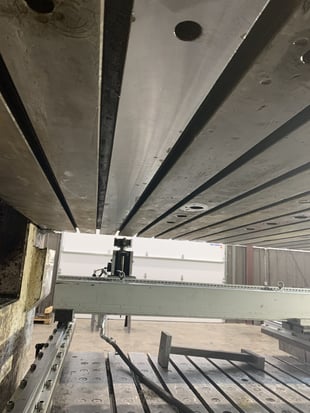

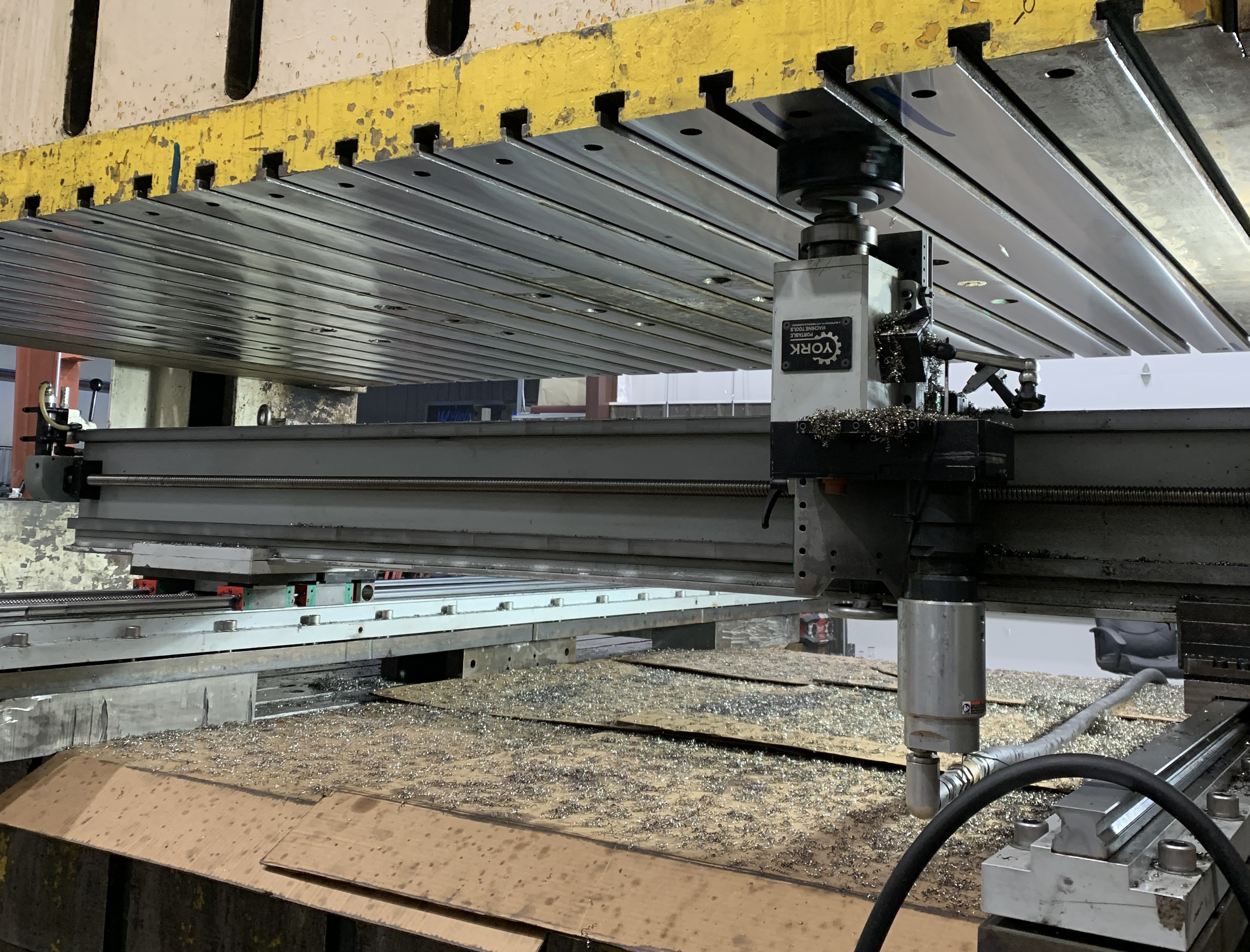

Inverted orientation was the defining constraint. Standard shop machining setups assume the work surface faces up. The press top bed, in its service position, faced down. The machine would have to work upside-down.

The Solution: Why a Portable Gantry Mill Was the Right Choice

SPR's LM series addressed each constraint directly:

• In-place operation: the machine assembles around the base without disturbing the turbine or its connections
• Compact footprint: modular rail sections fit the available access envelope
• Pneumatic power: SPR's pneumatic drive option (90 psi at 90 cfm) is accepted in classified electrical areas without the ATEX/IECEx certification requirements that apply to electric equipment
• Precision capability: ball screw and precision rail systems on all three axes deliver the surface quality a turbine base requires

The portable gantry milling machine selected from the LM series covered the full bed area in a single setup. No repositioning. No re-establishing the reference plane mid-job.

The Process: How the Job Was Done

• Pre-machining flatness mapping: a precision level survey of the full base area established the deviation profile before any material was removed; this confirmed the scope and set the machining reference

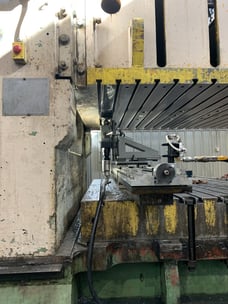

• Machine setup: rails were bolted directly to the base structure; the SPR LM series supports bolted, clamped, or magnetically attached mounting depending on the surface and access conditions
• Roughing passes: the spindle traversed the surface at a productive feed rate to remove high spots and establish a working reference plane; cutting head selection matched the base material
• Finishing passes: final passes at reduced feed rate achieved the target surface profile; SPR's variable feed rate of 0 to 9 inches per minute allows precise control at the finishing stage
• Verification: flatness was re-measured with a precision level across the full base area before the machine was demounted; the surface met the specification required for re-installation

Total job time from machine setup to final verification fit within the scheduled maintenance window.

The Results: What Was Achieved

The press top bed was machined flat. SPR brought the right machine, the right tooling, and the right configuration for an inverted milling setup on a 1,500-ton press. The job got done.

For Mission Tool, the result is straightforward: a press that was out of service with a bent bed returned to service with a flat one. In precision tool and die work, that's the only outcome that matters.

For applications involving surface geometry or access conditions outside the standard LM series capability, SPR's custom engineering team develops purpose-built tooling and fixtures.

Where the scope includes bore work alongside surface machining, a portable line boring machine can be mobilized to the same site. Where the application involves circular surfaces, a rotary milling machine is the right configuration.

Need to Restore Surface Flatness On-Site? Talk to SPR

SPR's portable milling machines have delivered precision surface flatness restoration in some of the most demanding field conditions in heavy industry. The LM series covers 48 to 120 inches of X-axis travel, runs on pneumatic or hydraulic power, and mounts in any orientation the access requires.

Frequently Asked Questions

Can a portable milling machine restore surface flatness to precision tolerances on-site? Yes. SPR's LM series uses ball screw and precision rail systems on all three axes to eliminate backlash and maintain dimensional accuracy under cutting loads. For confirmed tolerance specifications relevant to your application, contact SPR or reference the LM series specification sheets.

How is surface flatness verified after portable milling? Flatness is verified with a precision level or dial indicator measured across reference points on the machined surface. Verification is performed before the machine is demounted, while the setup is still in place, so any areas requiring additional passes can be addressed without re-setup.

How long does a portable milling flatness restoration job typically take? Total time depends on surface area, material condition, access complexity, and the tolerance required. A typical pump or motor base can often be completed within a single shift. Larger turbine or compressor bases take longer. SPR can provide a time estimate based on your specific job scope.

What types of equipment bases can SPR's portable mills resurface? Any accessible flat or near-flat metal surface is a candidate. Common applications include turbine and generator bases, pump and motor pads, compressor skid surfaces, press plates, machine beds, and structural steel foundations. For curved or circular surfaces, SPR's rotary milling machine is the appropriate choice.

Does SPR offer portable gantry mills for rent or purchase? Yes. The full LM series is available for portable milling machine rental or purchase. All rental equipment is inspected before dispatch and arrives on-site ready to work.
