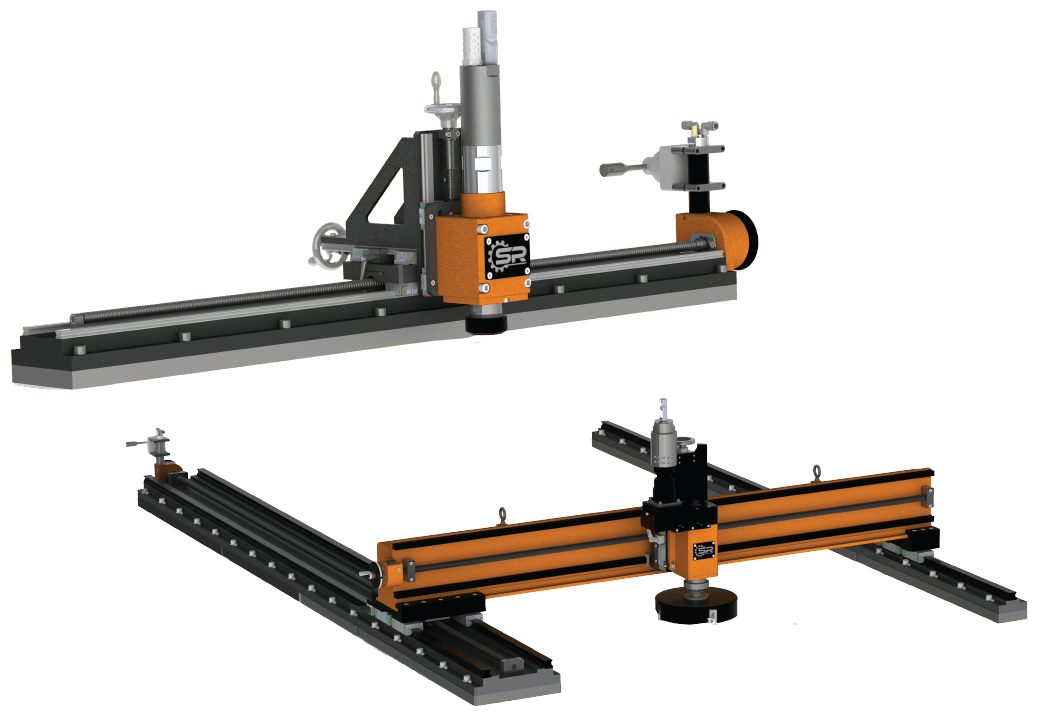

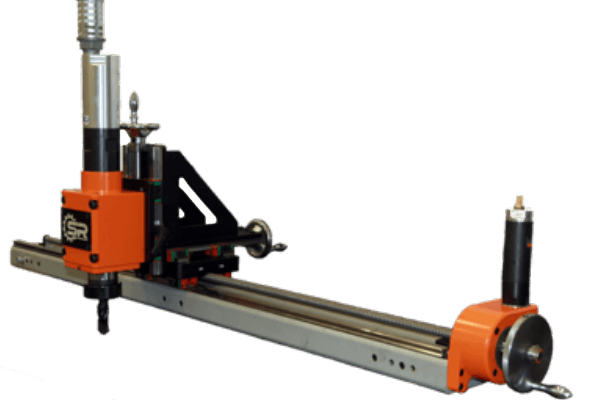

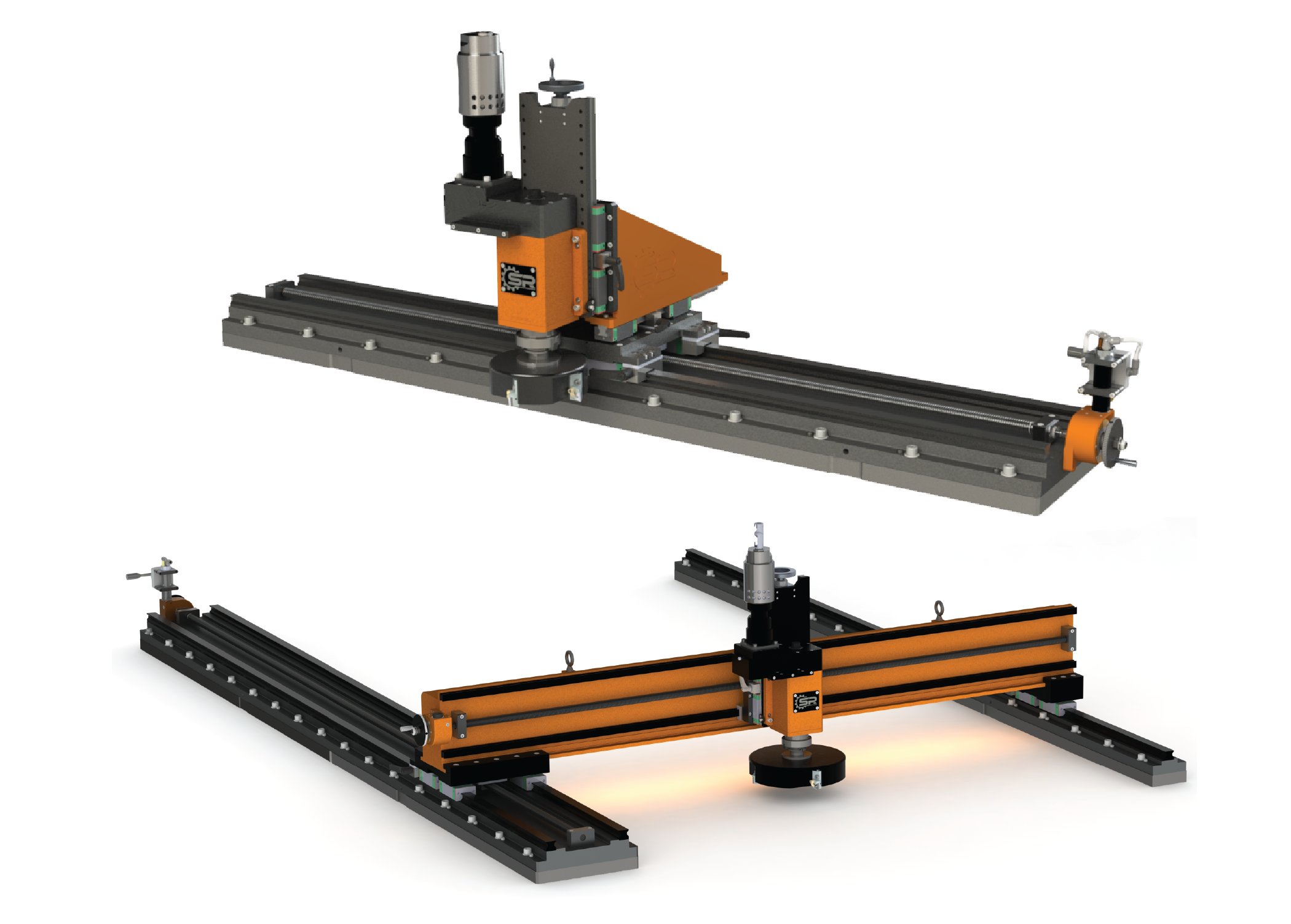

SPR Linear/Gantry Mills are three-axis, portable milling machines used for precision milling of critical mounting surfaces. These mills are designed with ball screws and rails on all three axis, X-Y-Z, for precise backlash-free motion. Multiple spindle positions allow for a greater range of milling adjustments whether it is horizontal, vertical and/or angular (90°). This allows the machine to produce CNC quality work in the most demanding of applications. For more information on purchasing or renting, request a quote below.
Advantages
Several Mills from which to choose:
Model #
Travel Length
LM-800-4
48”
LM-1000-6
72”
LM-1400-6
72”
LM-1000-8
96”
LM-1400-8
96”
LM-1400-10
120”
X – Travel 48 – 120 inches
Y – Travel from center 27 inches
Z – Travel 9 inches
Power feed rate 0 – 9 inches/min
Power supply – Pneumatic (90 psi @ 90 cfm)
Power supply – Hydraulic (5Hp manual or 10 Hp remote)
Spindle position is height adjustable
Spindle orientation is adjustable to 0, 90 and 180 degrees
Y-Axis arm can be positioned to either side of machine
